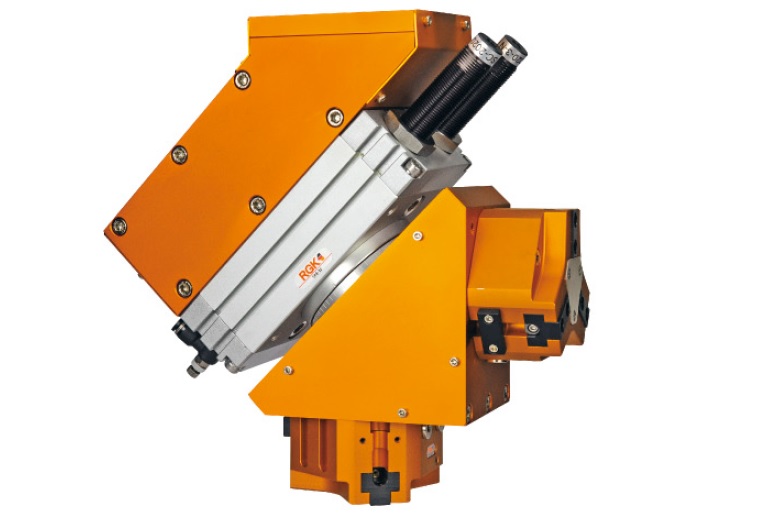

SRH 系列180度轉位模組
SRH 系列180度轉位模組
SRH 系列180度轉位模組
SRH 180° SWIVEL UNITS
SRH 180° SWIVEL UNITS
詳細介紹
●驅動轉矩:3 - 45Nm
●2種型號:SRH-25 ~SRH32
●雙作用氣缸的驅動器
●高靈活性,連續可調的旋轉角度從90°(-3℃)至180°(3 °)。
●動力傳動採用齒輪齒條來驅動。
●液壓減震器螺旋槽技術,從最小的磨損極限位置,平穩的動力吸收由於螺旋槽。
●Torque: 3 - 45Nm
●Types:SRH-25 ~ SRH32
●Double-acting cylinder drive.
●High flexibility, continuously adjustable rotation angle from 90 ° (-3 °) to 180 ° (3 °).
●Using rack and pinion power transmission to drive.
●Hydraulic shock absorbers spiral groove technology, from the smallest wear limit position, smooth power absorption due to the spiral groove.
●The series features air passages, with gripper backplane supply, the module allows absolutely no trachea exposed, and provides up to five pneumatic air feed through. Central hole allows the sensor cable directly go through.
●2種型號:SRH-25 ~SRH32
●雙作用氣缸的驅動器
●高靈活性,連續可調的旋轉角度從90°(-3℃)至180°(3 °)。
●動力傳動採用齒輪齒條來驅動。
●液壓減震器螺旋槽技術,從最小的磨損極限位置,平穩的動力吸收由於螺旋槽。
●該系列內設氣體通路,搭配夾爪背板供氣,可使模組完全沒有任何氣管外露,最多提供5個氣動空氣進料通過。
PS:以上模組不附調速接頭
PS:以上模組不含夾爪本體
●Torque: 3 - 45Nm
●Types:SRH-25 ~ SRH32
●Double-acting cylinder drive.
●High flexibility, continuously adjustable rotation angle from 90 ° (-3 °) to 180 ° (3 °).
●Using rack and pinion power transmission to drive.
●Hydraulic shock absorbers spiral groove technology, from the smallest wear limit position, smooth power absorption due to the spiral groove.
●The series features air passages, with gripper backplane supply, the module allows absolutely no trachea exposed, and provides up to five pneumatic air feed through. Central hole allows the sensor cable directly go through.
